Description |
---|

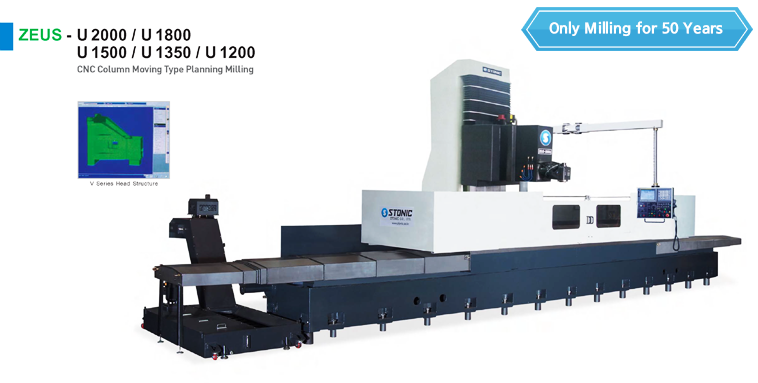

This is STONIC’s top-of –the-line Model, ZEUS. ZEUS is Single Column Milling Machine. The Length of Column to Spindle center is MAX 1,850mm which shows our core technology to prevent the head from drooping down as it usually does. But STONIC overcomes the limitation of norm with KNOW-HOW of their 50 years. STONIC has patents regarding this technology. That is why, ZEUS provides a unique solution of workpiece between 1,200mm and 1,850mm that the double column of machines usually do past. So ZEUS can be provided with half price of Double Column machine with the same Specification. And please take a note of other ZEUS’s amazing Specifications. |
Article | ZEUS-U1200 | ZEUS-U1350 | ZEUS-U1500 | ZEUS-U1800 | ZEUS-U2000 | |
---|---|---|---|---|---|---|
Strocke(s) | Table Size | 3,400×960 mm | 4,100×1,100 mm | 4,400 X 1150 mm | 5,000 X 1,200 mm | 6,000 X 1,200 mm |
Table T-Slot | 7×22 mm H8 | |||||
Max. Longitudinal Travel (X axis) | 3,400 mm | 4,100 mm | 4,400 mm | 5,000 mm | 6,000 mm | |
Max. Cross Travel (Y axis) | 1,250 mm | 1,350 mm | 1,500 | 1,800 | 2,000 | |
Max. Vertical TRavel (Z axis) | 1,200 mm | 1.350 mm | 1,500 | 1,500 | 1,800 | |
Spindle Center to Column | 1,200 | 1,350 | 1,450 | 1,500 | 1,500 | |
Feed Speed | Rapid Feed Rate | X.Y.Z axis 10 M/min | ||||
Cutting Feed Rate (Maunal) | 0~1,260 mm/min | |||||
Cutting Feed Rate (Automatic) | 1~2,000 mm/min | |||||
Manual Handle Feed (by Pulse) | 0.001, 0.01, 0.1mm/ 1 Scale 0.001, 0.01, 0.1 mm/ 1Step | |||||
X, Y, Z Screw | 80 x 80 x 63 mm | |||||
Spindle | Spindle Taper | ISO B.T No.50 (N.T No. 50 : Option) | ||||
Spindle Speed change Steps VAriable |
Hi,low 2steps | |||||
Spindle Speed (r.p.m) | 0~2500 r.p.m | |||||
Motor | Spindle Motor | 15 Kw (A.C servo) | 18 Kw | 22 Kw | ||
Feed Motor (for X, Y, Z axis) | 4 Kw | X, Y : 6 Kw, Z : 4 Kw | ||||
Lubrication Pump Motor | 2P×20W×2EA | |||||
Coolante Pump Motor | 2P×180W | |||||
Spindle Lubrication Motor | 4P×100W | |||||
Screw Conveyer Motor | 4P×400W | |||||
etc. | Total Weight | 27,000 Kgf | 28,000 Kgf | 32,000 Kgf | 35,000 Kgf | 37,000 Kgf |
Max. Load on Table | 16 Ton (Option 25 Ton) | |||||
Foor Space | 8,000×4,500 mm | 10,400×4,500 mm | 14,000×5,000 mm | 14,500×5,500 mm | 15,000×6,000 mm |
