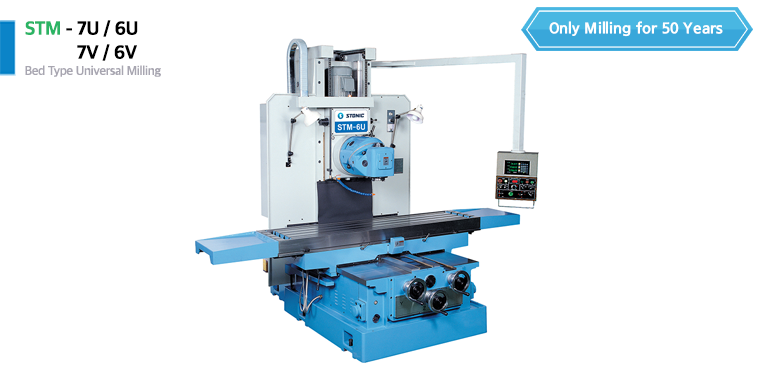

STM 7U/6U


Description
Steady & Best Selling Milling Machine


Article UNIT STM-7U STM-6U
Table Working Surface (L×W) mm 3,200×605 2,200×505
T-Slots (Width×Number) mm 5×20 4×20
Max Travel (Longitudinal) mm 2,600 (O.T) 1,600 (O.T)
Max Travel (Cross) mm 700 (O.T) 700 (O.T)
Max Travel (Vertical) mm 700 (O.T) 700 (O.T)
Number of Feeds step no step
Feeds/min
(Longitudinal, Cross)
mm/min 12~1,800
Feeds/min (Vertical) mm/min 6~900
Rapid Feed/min
(Longitudinal, Cross)
mm/min 3,200
Rapid Feed/min (Vertical) mm/min 1,600
Spindle Spindle Nose B.T #50
Number of Speeds step 12
Speeds r.p.m 45~1,350
Spindle Center to Column mm 650 650
Motor Spindle Drive Motor kw 11 (4P) 11 (4P)
Feed Drive Motor kw AC Servo 2.9 AC Servo 2.9/3.5
Coolant Pump Motor w 100 (2P)
X, Y, Z SCREW - 2,000
※ Specifications are subject to change without notice
