Description |
---|

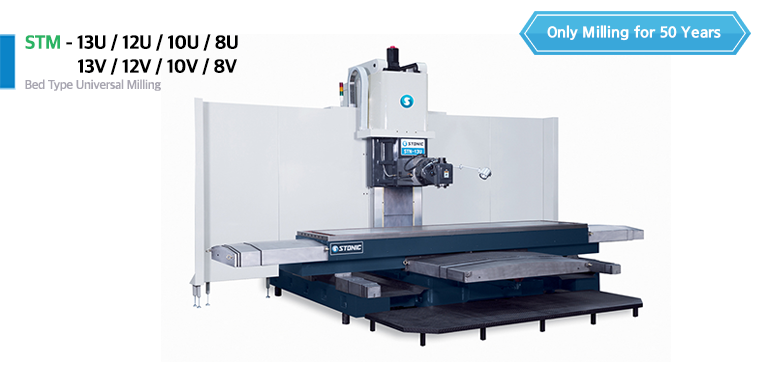

Steady & Best Selling Milling Machine This is our Best and Steady Selling model. The length from Column to Center of Spindle is Max 1,500 mm. Spindle RPM is MAX 4,000 RPM. Please watch out Outstanding Specification compared to Competitor’s. |
Article | UNIT | STM-13U | STM-12U | STM-10U | STM-8U | |
---|---|---|---|---|---|---|
Table | Working Surface (L×W) | mm | 4,200×1,100 | 3,800×905 | 3,800×805 | 3,800×805 |
T-Slots (Width×Number) | mm | 8×22 | 8×20 | 7×20 | 7×20 | |
Max Travel (Longitudinal) | mm | 4,000 (O.T) | 3,400 (O.T) | 3,200 (O.T) | 3,100 (O.T) | |
Max Travel (Cross) | mm | 1,300 (O.T) | 1,250 (O.T) | 1,050 (O.T) | 850 (O.T) | |
Max Travel (Vertical) | mm | - | 1,200 (O.T) | 1,000 (O.T) | 850 (O.T) | |
Number of Feeds | step | no step | ||||
Feeds/min (Longitudinal, Cross) |
mm/min | 12~1,800 | ||||
Feeds/min (Vertical) | mm/min | 6~900 | ||||
Rapid Feed/min (Longitudinal, Cross) |
mm/min | 3,200 | ||||
Rapid Feed/min (Vertical) | mm/min | 1,600 | ||||
Spindle | Spindle Nose | B.T | #50 | |||
Number of Speeds | step | 12 | ||||
Speeds | r.p.m | 45~1,350 | ||||
Spindle Center to Column | mm | 1350 | 1250 | 1100 | 900 | |
Motor | Spindle Drive Motor | kw | 15 (4P) | |||
Feed Drive Motor | kw | AC Servo 2.9/3.5 | ||||
Coolant Pump Motor | w | 180 (2P) | ||||
X, Y, Z SCREW | - | 4,000 |
