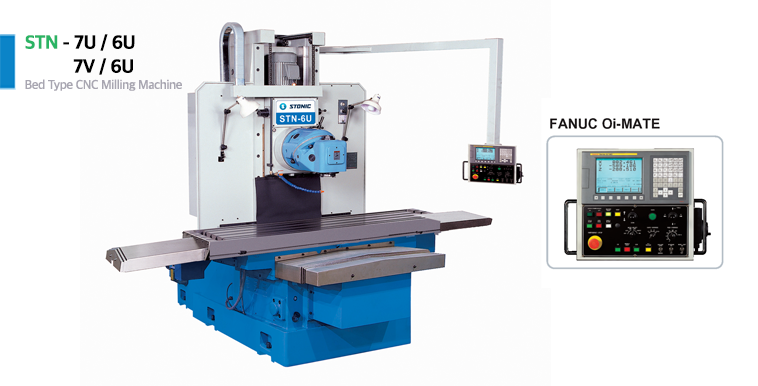

STN 7U/6U

Article UNIT STN-7U STN-6U
Table Working Surface (L×W) mm 3,200×605 2,200×505
T-Slots (Width×Number) mm 5X20 4X20
Max Travel (Longitudinal) mm 2,600 (O.T) 1,600 (O.T)
Max Travel (Cross) mm 700 (O.T) 700 (O.T)
Max Travel (Vertical) mm 700 (O.T) 700 (O.T)
Number of Feeds step no step
Feeds/min
(Longitudinal, Cross)
mm/min 0~3,000
Feeds/min (Vertical) mm/min 0~3,000
Rapid Feed/min
(Longitudinal, Cross)
mm/min Max. 10,000 10,000
Rapid Feed/min (Vertical) mm/min Max. 10,000 10,000
Spindle Spindle Nose B.T #50 (NT #50 : Option)
Number of Speeds step 11 steps
Speeds r.p.m 45~1,350
Spindle Center to Column mm 650
Motor Spindle Drive Motor kw 11(4p)
Feed Drive Motor kw SERVO MPTOR (X,Y,Z)
Coolant Pump Motor w 100(29)
Floor Space - - 14,900×2,990X3,100
X, Y, Z SCREW - X,Y,Z(4010)
C.N.C CONTROLLER - SIEMENS 802D / FANUC Oi-MC
Table Load kg 2000 2000
Electrical Power V 380V, 3∅ (50kVA) / 220V, 3∅ (50kVA) FANUC (380, included TR)
※ Specifications are subject to change without notice
