Machine Center

Description

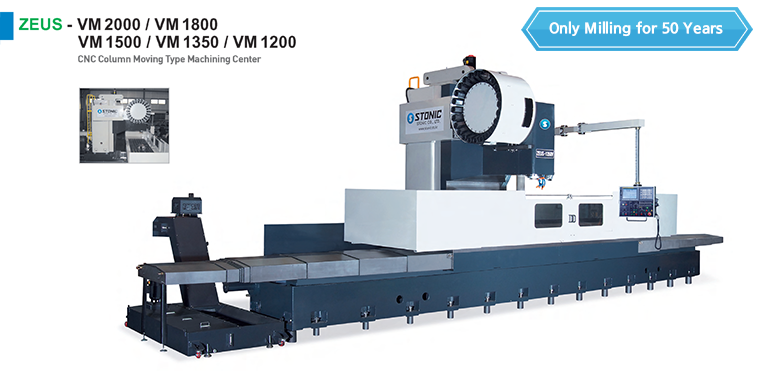

Machining Center integrating the ZEUS Identity. Huge, Strong and Incomparable Performance


Article VM1200 VM1350 VM1500 VM1800 VM2000
Strocke(s) Table Size 3,400×960 mm 4,100×1,100 mm 4,400 X 1150 mm 5,000 X 1,200 mm 6,000 X 1,500 mm
Table T-Slot 7×22 mm H8
Max. Longitudinal Travel (X axis) 3,400 mm 4,100 mm 4,400 mm 5,000 mm 6,000 mm
Max. Cross Travel (Y axis) 1,250 mm 1,350 mm 1,500 1,800 2,000
Max. Vertical TRavel (Z axis) 1,200 mm 1.350 mm 1,500 1,500 1,800
front bed( one body structure) length 5,500 6,500 7,500 8,000 12,000
Spindle Center to Column 1,200 1,350 1,450 1,500 1,850
Feed Speed Rapid Feed Rate X.Y.Z axis 8 M/min
Cutting Feed Rate (Maunal) 0~1,260 mm/min
Cutting Feed Rate (Automatic) 1~2,000 mm/min
Manual Handle Feed (by Pulse) 0.001, 0.01, 0.1mm/ 1Scale 0.001, 0.01, 0.1 mm/ 1Steps
X, Y, Z Screw 80 x 80 x 63 mm
Spindle Spindle Taper ISO B.T No.50 (N.T No. 50 : Option)
Spindle Speed change
Steps VAriable
Hi,low 2 steps
Spindle Speed (r.p.m) 0~6,000 r.p.m (Option 8,000 r.p.m)
Motor Spindle Motor 15 Kw (A.C servo) 18 Kw 22 Kw
Feed Motor (for X, Y, Z axis) 4 Kw X, Y : 6 Kw, Z : 4 Kw
Lubrication Pump Motor 2P×20W×2EA
Coolante Pump Motor 2P×180W
Spindle Lubrication Motor 4P×100W
Screw Conveyer Motor 4P×400W
etc. Total Weight 25,000 Kgf 26,000 Kgf 30,000 Kgf 35,000 Kgf 37,000 Kgf
Max. Load on Table 16 Ton (Opton 25 Ton)
Foor Space 8,000×4,500 mm 10,400×4,500 mm 14,000×5,000 mm 14,500×5,500 mm 15,000×6,000 mm
※ Specifications are subject to change without notice
