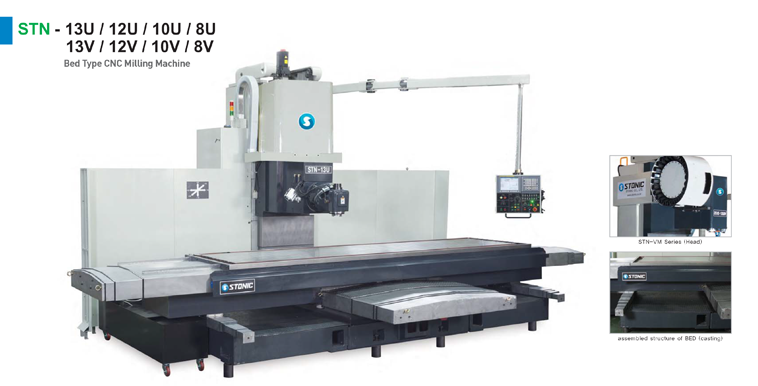

STN 13U/12U/10U/8U

Article STN-13U STN-12U STN-10U STN-8U
Table Working Surface (L×W) 4,200×1,100 mm 3,800×905 mm 3,800×805 mm 3,800×805 mm
T-Slots (Width×Number) 8X20 mm 8X20 mm 7X20 mm 7X20 mm
Max Travel (Longitudinal) 4,000 (O.T) mm 3,400 (O.T) mm 3,200 (O.T) mm 3,100 (O.T) mm
Max Travel (Cross) 1,300 (O.T) mm 1,250 (O.T) mm 1,050 (O.T) mm 850 (O.T) mm
Max Travel (Vertical) 1,250 (O.T) mm 1,200 (O.T) mm 1,000 (O.T) mm 850 (O.T) mm
Number of Feeds no step
Feeds/min (Longitudinal, Cross) 0~3,000 mm/min
Rapid Feed/min (Vertical) 0~3,000 mm/min
Rapid Feed/min (Longitudinal, Cross) Max. 8,000 mm Max. 8,000 mm Max. 10,000 mm Max. 10,000 mm
Rapid Feed/min (Vertical) Max. 8,000 mm Max. 8,000 mm Max. 10,000 mm Max. 10,000 mm
Spindle Spindle Nose #50 (NT #50 : Option) B.T
Number of Speeds Hi,low 2 steps
Speeds (L:0~750, H751~2,500 : NC) r.p.m
Spindle Center to Column 1,300 mm 1,250 mm 1,100 mm 900 mm
Motor Spindle Drive Motor 15 kw
Feed Drive Motor SERVO MOTOR : X.Y.Z (4) kw
Coolant Pump Motor 180 w
X, Y, Z SCREW XZ(6310), Y(80) X(6310), YZ(5010) XZ(5010), Y(4010)
C.N.C CONTROLLER SIEMENS 810D / FANUC Oi-MC
Table Load 4,000 kg
Electrical Power 380V, 3∅ (50kVA) / 220V, 3∅ (50kVA) FANUC (380, included TR)
※ Specifications are subject to change without notice
