| Description |
The majority of educational milling machine in high schools, colleges of South KOREA is this machine.
More than any other competitor’s.
|
| Article |
UNIT |

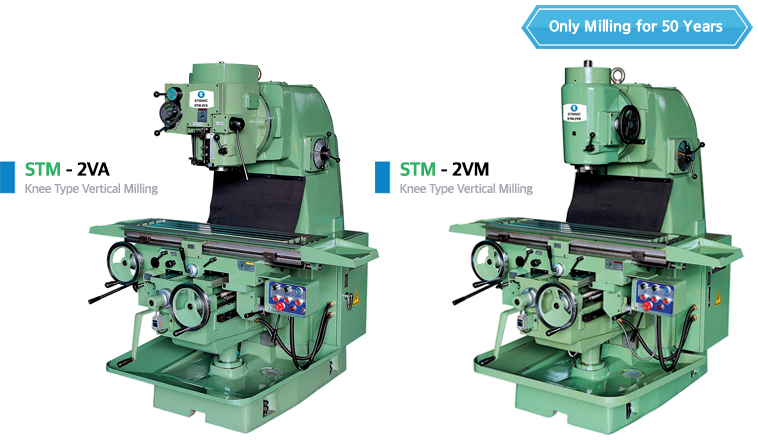

STM 2VA |
STM 2VM |
| Table |
Working Surface (L×W) |
mm |
1,100×290 |
1,100×290 |
| T-Slots (Width×Number) |
mm |
16×3 |
16×3 |
| Max Travel (Longitudinal) |
mm |
820 (O.T) |
820 (O.T) |
| Max Travel (Cross) |
mm |
300 (O.T) |
300 (O.T) |
| Max Travel (Vertical) |
mm |
450 (O.T) |
450 (O.T) |
| Feeds/min (Longitudinal) |
mm/min |
15~720 |
15~720 |
| Feeds/min (Cross) |
mm/min |
15~720 |
15~720 |
| Rapid Feed/min (Long, Cross) |
mm/min |
3,000 |
3,000 |
| Rapid Feed/min (Vertical) |
mm/min |
800 |
800 |
| Table Load (Max) |
kg |
250 |
250 |
| Spindle |
Taper of Spindle Bore |
N.T |
50 |
50 |
| Number of Spindle Speeds |
step |
9 |
9 |
| Range of Spindle Speeds |
r.p.m |
90~1,400 |
90~1,400 |
| Quill Power Feeds (1/Rev) |
m/rev |
0.03, 0.06, 0.12 |
- |
| Vertical Spindle Travel |
mm |
90 |
90 |
| Head Tilting Angle |
Deg |
±45∘ |
±45∘ |
| Motor |
Main Spindle Motor |
kw |
3.75(5HP), 4P |
3.7(5HP), 4P |
| Long & Cross Feed Motor |
kw |
1.5(2HP), 4P |
1.5(2HP), 4P |
| Vertical Rapid Motor |
kw |
1.1(1.5), 6P |
1.1(1.5), 6P |
| Coolant Pump Motor |
w |
100, 2P |
100, 2P |
| Floor Space (W×L) |
mm |
3,000×2,000 |
3,000×2,000 |
| Net Weight |
kg |
2,300 |
2,300 |
※ Specifications are subject to change without notice
